5000 PSI 3/4" Hydraulic Hose

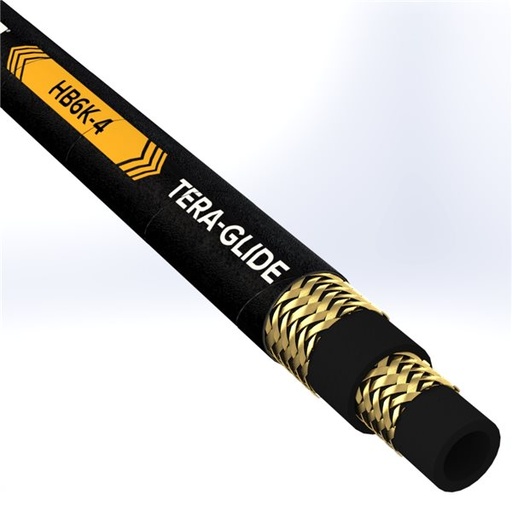

HB6K-4
1/4" ISOBARIC BRAID 6,100 PSI TERA-GLIDE CVR

Description
Recommended for: High pressure hydraulic oil lines

Tube: Oil resistant synthetic rubber

Reinforcement: Up to 1/2" one, from 5/8" two high tensile steel wire braid

Cover: Abrasion, ozone and weather resistant synthetic rubber

Meets flame resistant MSHA designation

Temperature Range: -40° to +212°F

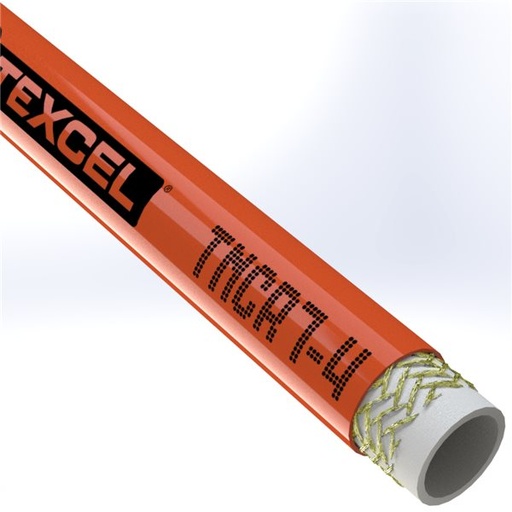

1/4" SAE 100R7 NON CONDUCTIVE

1/4" ISOBARIC BRAID 3,000 PSI TERA-GLIDE CVR

3/8" SAE 100R7 NON CONDUCTIVE

1/4" ISOBARIC BRAID 5,100 PSI TERA-GLIDE CVR

1/4" ISOBARIC BRAID 6,100 PSI TERA-GLIDE CVR

1/4" ISOBARIC BRAID 3,000 PSI TERA-GLIDE XT CVR

3/8" ISOBARIC BRAID 3,000 PSI TERA-GLIDE CVR

SAE Rating: SAE 100R17
Dash Size: 08
Inside Diameter: 0.50 in
Outside Diameter: 0.81 in
Temperature Low: -40 deg F
Temperature High: 212 deg F
Pressure Rating: 3000 psi

3/8" ISOBARIC BRAID 4,100 PSI TERA-GLIDE CVR

3/8" ISOBARIC BRAID 5,100 PSI TERA-GLIDE CVR

1/4" ISOBARIC BRAID 6,100 PSI TERA-GLIDE CVR x 100'

1/2" ISOBARIC BRAID 3,000 PSI TERA-GLIDE CVR

1/4" ISOBARIC BRAID 5,100 PSI TERA-GLIDE XT CVR

3/8" ISOBARIC BRAID 5,100 PSI TERA-GLIDE CVR x 100'

1/2" ISOBARIC BRAID 4,100 PSI TERA-GLIDE CVR

1/2" ISOBARIC BRAID 5,100 PSI TERA-GLIDE CVR

3/8" ISOBARIC BRAID 3,000 PSI TERA-GLIDE XT CVR
