Description

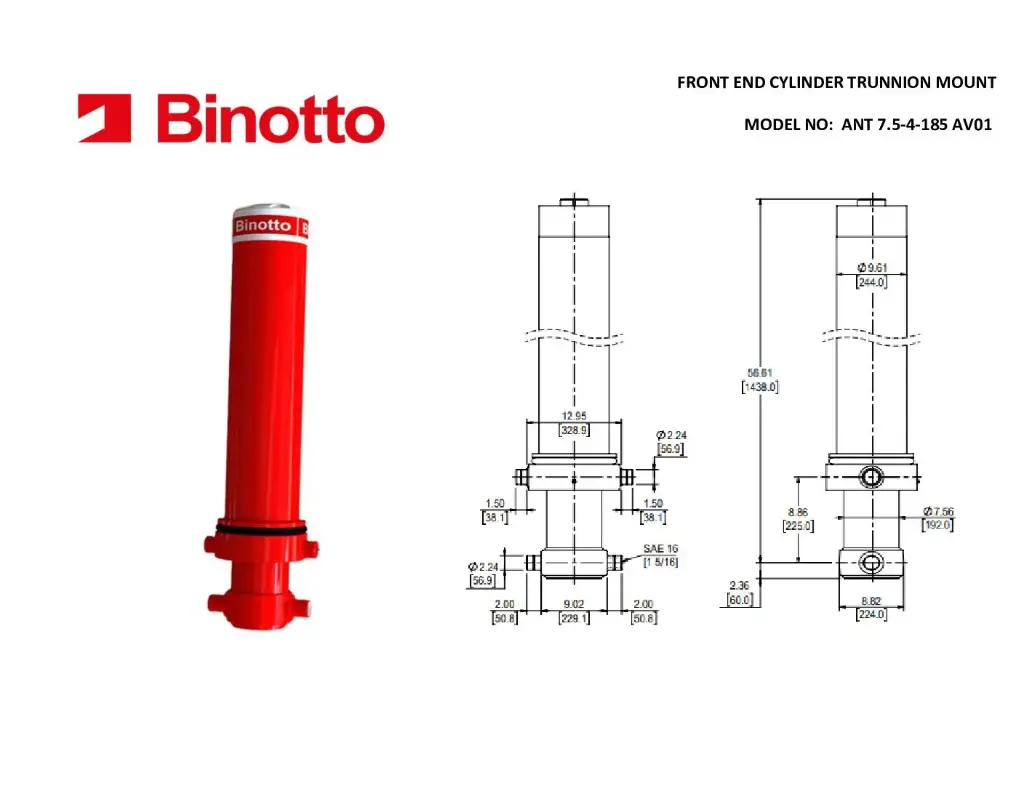

ANT 7.5-4-185 AV01 Binotto SAT Telescopic Cylinder

Stroke:
182.20″

Closed:
56.93″

Open Extended Length:
239.13″

Base End Mount Type:
Trunnion

Rod End Mount Type:
Trunnion

Trunnion Closed:
9.61

Trunnion Open:
191.81

Trunnion Width:
13.02

Trunnion Pin Dia:
2.25

Trunnion Pin Length:
2.00
