Texcel TC100 Ultimate Master Bundle: Mobile Shop Edition
Texcel TC100 Ultimate Master Bundle: Mobile Shop Edition
The Complete 100% Texcel Matched-Component Solution.
Stop outsourcing your hydraulic repairs. The Texcel TC100 Ultimate Master Bundle is a comprehensive, turnkey solution designed for heavy-duty fleet maintenance, large-scale agricultural operations, and professional field-service technicians.
This bundle pairs the high-performance TC100-SP-CDP Portable Crimper with a massive 600-foot inventory of high-pressure hose and over 150 premium F2-Series fittings, including specialized O-Ring Face Seal (ORFS) configurations found on modern Caterpillar, John Deere, and Case equipment.

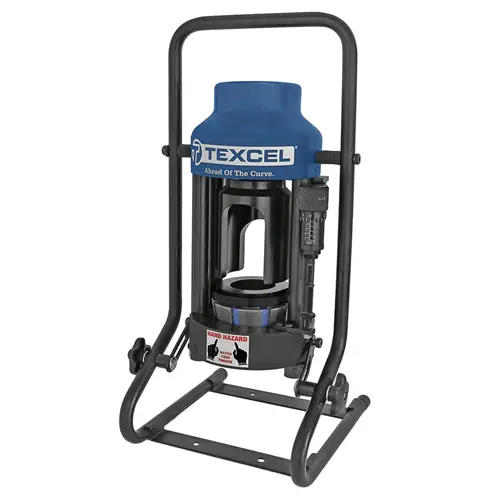

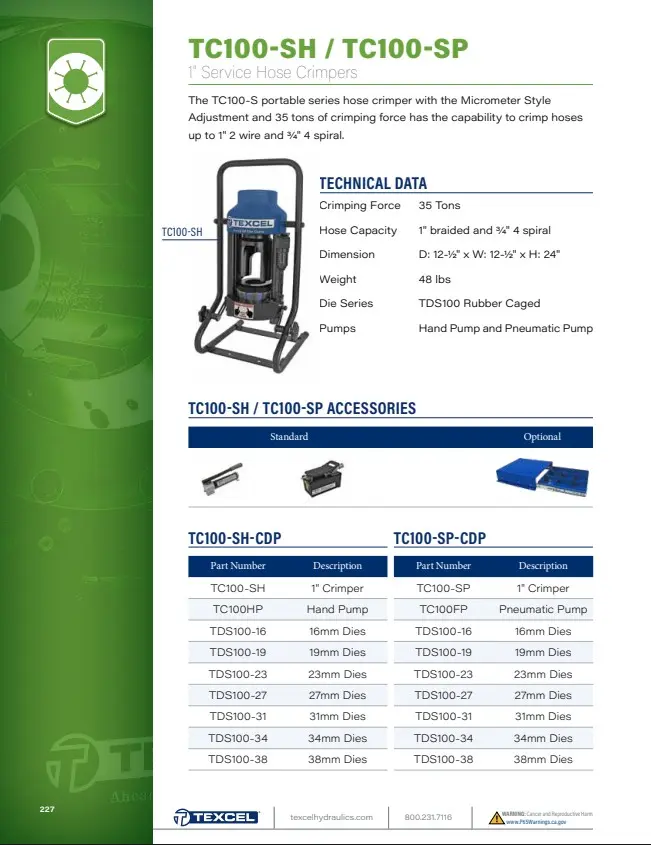

1. The Core: Texcel TC100-SP-CDP Crimper
Force: 1000kN (112 Tonnes) of manual hydraulic power.
Capacity: Specifically optimized for 1/4" through 1" 2-wire and 4-wire hoses.
Precision: Micrometer-adjustable head with LED "Crimp Complete" indicator.
Mobility: Integrated 2-speed hand pump; no power source required for factory-quality seals.
2. The Hose Shop: 600ft High-Pressure Inventory
A full spectrum of Texcel’s most durable high-pressure hoses (100ft of each size):

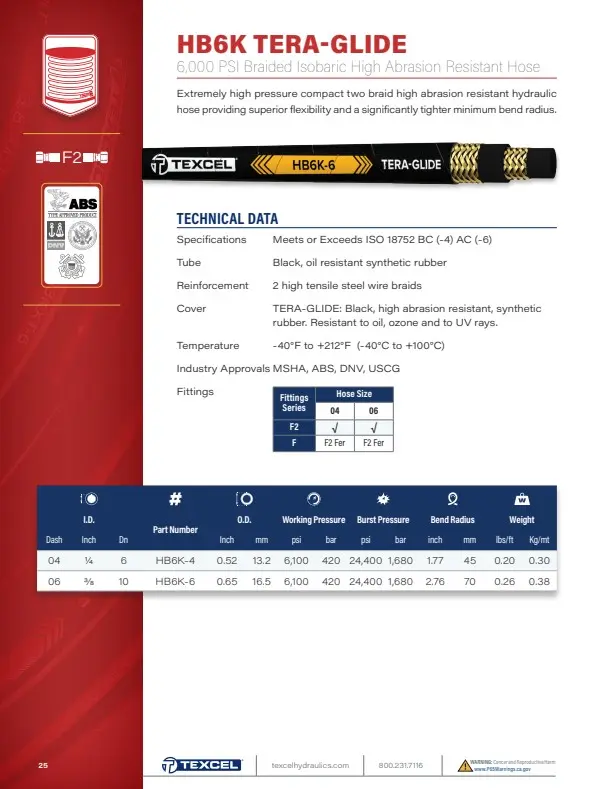

HB6K-4 (1/4") & HB6K-6 (3/8"): 6,000 PSI high-pressure performance.

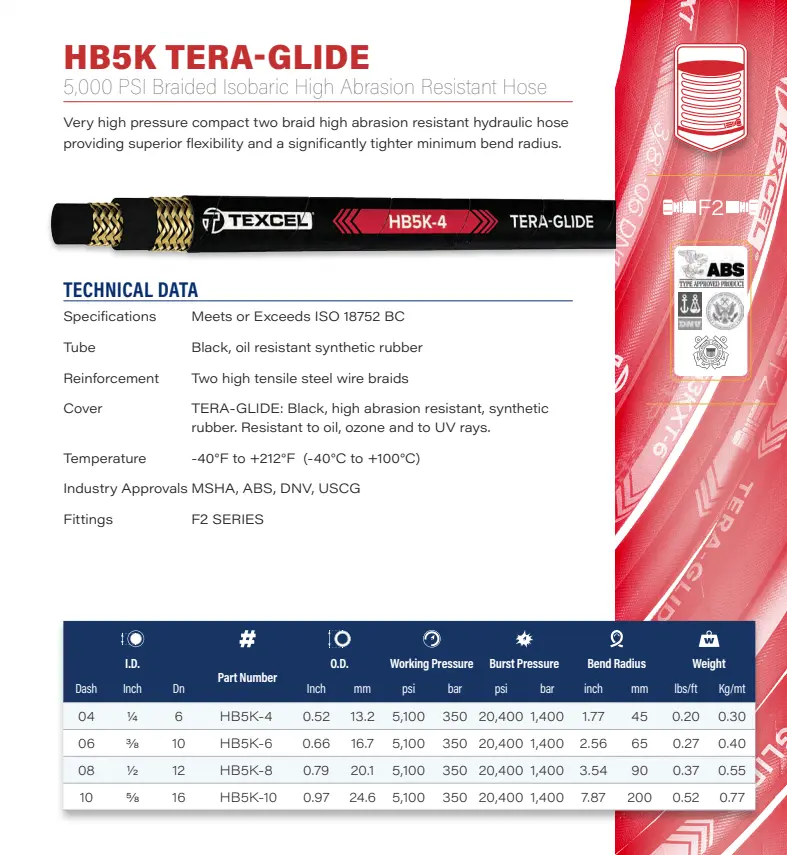

HB5K-8 (1/2") & HB5K-10 (5/8"): 5,000 PSI high-pressure performance.

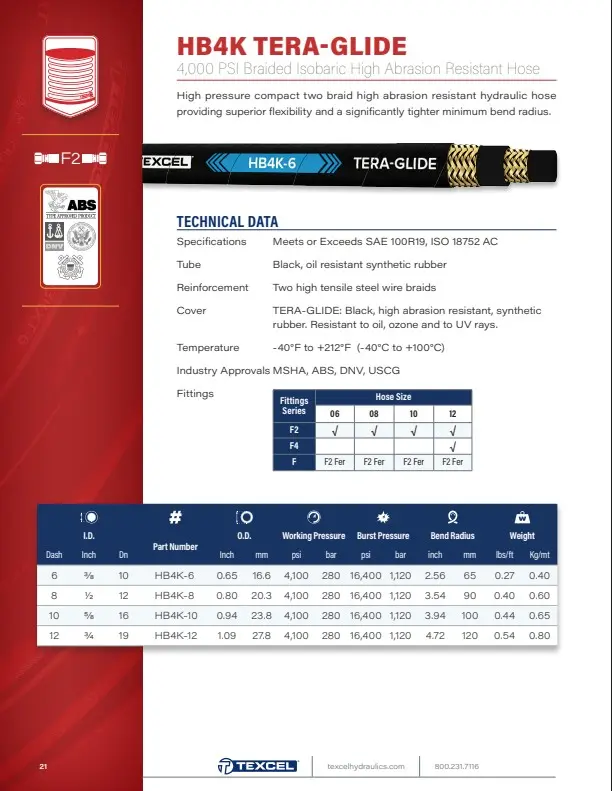

HB4K-12 (3/4"): 4,000 PSI mid-high pressure.

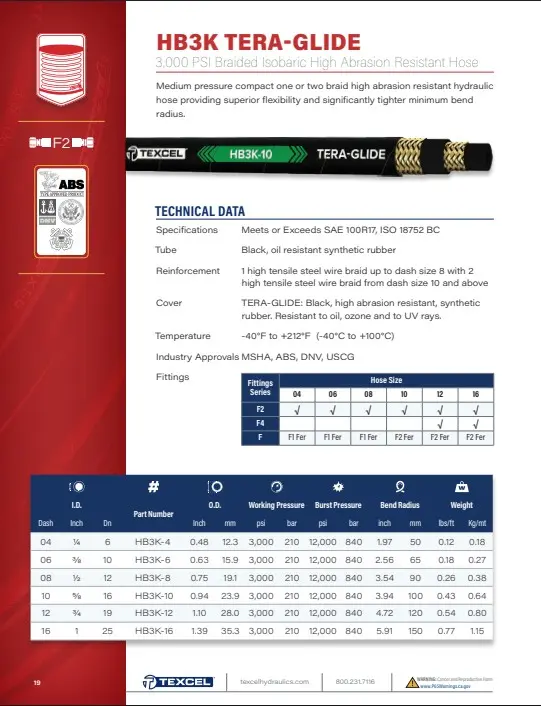

HB3K-16 (1"): 3,000 PSI for high-flow return and pressure lines.
3. The Fitting Master-Kit: 155+ Units
This bundle includes a deep inventory (5 units of each style) across the most common thread types and sizes (1/4" to 1"):
JIC Series (37° Flare):
JFS (Female Swivel) – Straight
JFS90M (Female Swivel) – 90° Elbow
JM (Male) – Straight
NPT Series (Pipe Thread):
PM (Male) – Straight
ORFS Series (O-Ring Face Seal):
OFS (Female Swivel) – The industry standard for leak-prevention in modern heavy machinery.
Bundle Specifications & Capabilities
| Feature | Specification |
| System Brand | 100% Texcel Matched Components |
| Crimping Range | 1/4" up to 1" (Included in kit) |
| Total Hose Length | 600 Feet (100ft per size) |
| Total Fittings | 155+ Units (31 unique styles/sizes) |
| Applications | Construction, Forestry, Mining, Agriculture |
Why the "Ultimate Master Bundle"?
Matched-Component Reliability: When you use Texcel hoses with Texcel F2 fittings and a Texcel machine, you are building a certified assembly that meets or exceeds SAE performance standards.
Modern Equipment Ready: With the inclusion of ORFS (O-Ring Face Seal) fittings, you can service the newest generation of heavy equipment that standard NPT or JIC kits can't touch.
Maximum ROI: By having 100ft rolls and a deep fitting inventory, you reduce "per-crimp" costs and ensure your crew never waits on a parts delivery again.
[Equip Your Fleet with the Ultimate Texcel Shop – Order Today]
