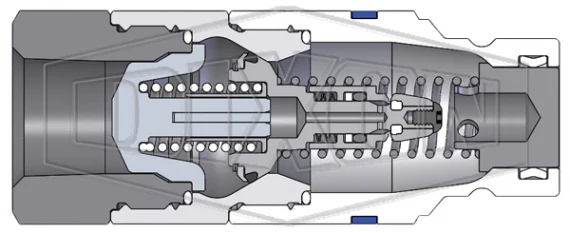

QD HTE3F4
- 3/8 in Quick Disconnect x 1/2 in FNPTF
- Non-linear connection force at all pressures
- No maximum connection pressure restrictions, up to 5000 psi
- Head pressure or valve bleed-by has minimal effect on connection force
- Less susceptible to system contamination
- Design is scalable performing similarly in all sizes
- Smooth connection action
- Connectable with trapped pressure on HTE half only
- Machined components are manufactured using solid steel bar stock
- Steel componentry is plated using RoHS compliant zinc nickel for superior corrosion resistance
- Stainless steel retaining rings and springs maximize corrosion resistance and extend service life
- Nipples are hardened to provide resistance to brinneling during impulse service
- Molded polyurethane valve seals, with a temperature range of -65 to 212 deg F
- Ancillary nipple seals are nitrile (Buna-N), with a temperature range of -40 to 250 deg F
- Parker® FEC Series, Stucchi® APM Series, Faster 3FFH Series
- Conforms to ISO 16028 interchange standard interchangeable with Parker® FEC, Faster 3FFH, Stucchi® APM
