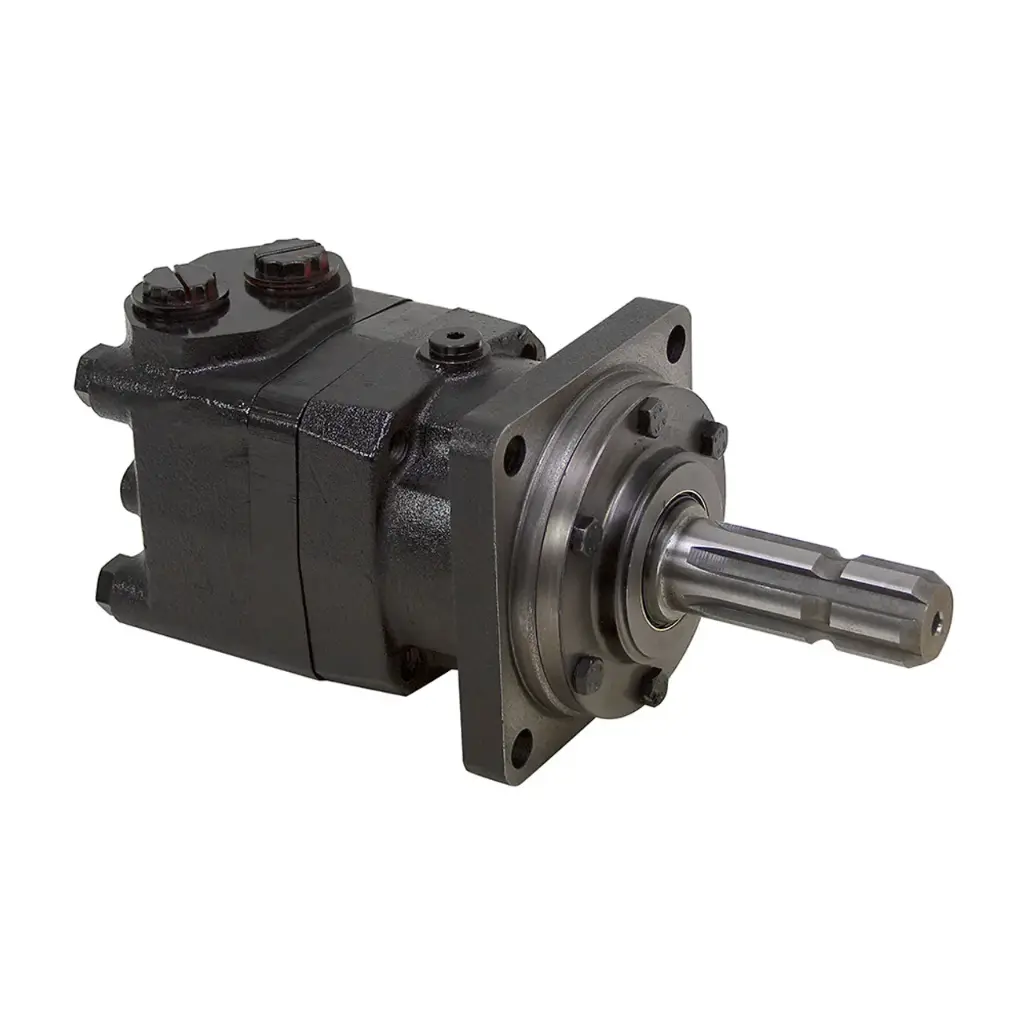

BMT-160-K6-SL-S
Product Description
9.83 cu in PTO DRIVE MOTOR
Brand new, DYNAMIC BMT series hydraulic motor with agricultural standard six tooth splined shaft. Heavy duty with high flow capacity. ROLORTORC power element. Tapered roller bearings on output shaft for high axial and radial load capacity. Shaft has retention groove centered 1-1/2" from shaft end. Interchangeable with DANFOSS OMT motors.
SPECIFICATIONS
- Brand Dynamic
- Model 61721
- Build Number BMT-160-K6-SL-S
- Disp. 9.83 cu.in./rev.
- Pressure
2944 PSI (Cont.)
3533 PSI (Int.) - Torque
4168 in-lb. (Cont.)
5071 in-lb. (Int.) - Speed
614 RPM (Cont.)
770 RPM (Int.) - Flow
26.42 GPM (Cont.)
33.02 GPM (Int.) - Rotation Reversible
- Mount 4 bolt SAE C
6-3/8" bolt circle, 5" pilot dia. - Shaft 1-3/8" dia. x 5" 6T spline
- Ports SAE 12
- Case Drain SAE 6
- Size 7-1/2" x 5-5/8" x 5-5/8"
- Shpg. 47 lbs.
